Category | Plug With Phase portection relay |
Type | New item |
Condition | |
Type | Pre-owned Items |
Condition | |
Item status | |
Prepare duration | |
Join promotions | |
Highlight |

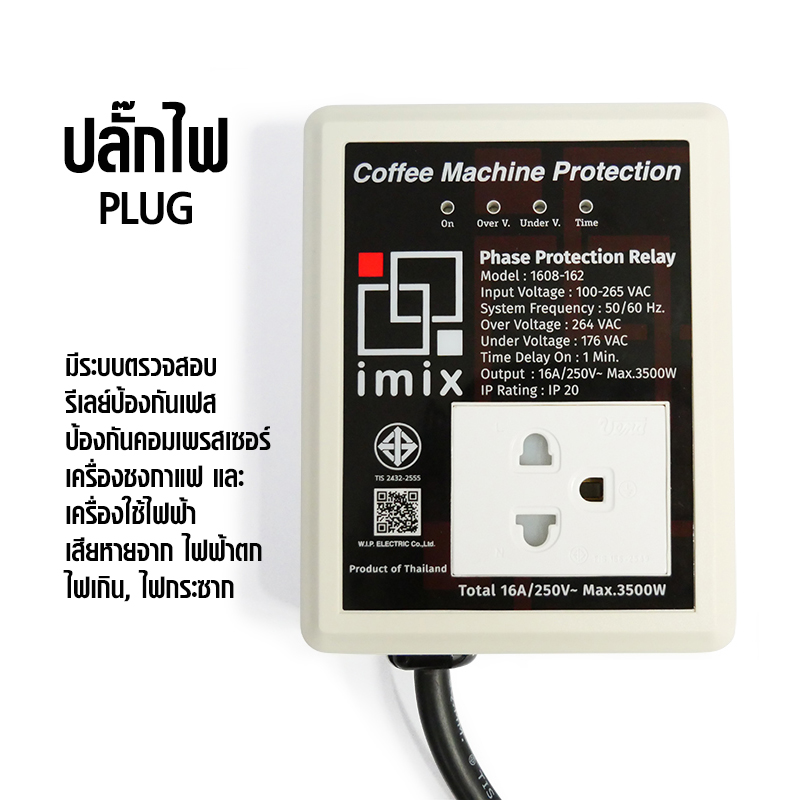

Power plug, phase failure relay, compressor protection Coffee makers, refrigerators, freezers, and other electrical appliances The machine is designed to protect the compressor from power failure, overload, shortage, helping to extend the service life of the compressor.
|
Information |
Item weight
Barcode
Created time
Last updated on
|
Item description |
Power plug or inspection device and protect the compressor Coffee machine refrigerator, freezer, and other electrical equipment
The unit is designed to protect the compressor from power failure, overload, shortage,
Help extend the service life of the compressor. When there is a voltage drop or increase more than 20% of normal pressure
The relay automatically cuts off the circuit to protect the compressor from damage. When the pressure returns to normal through the set value
The delay circuit will start counting down the time until the set time has been reached. The relay will continue to work. (Energize) automatically pre-delay
Operation of the refrigerator so that the internal refrigerant level is reduced to normal levels before operating again. to protect the compressor from damage
Specification :
Feature
Power consumption : 1.2 W
Input voltage : 100-265 VAC
System frequency : 50/60 Hz.
Accuracy : +0.5 % of normal voltage
Range
Over voltage protection : 20% (264 VAC)
Under voltage protection : 20% (176 VAC)
Time delay (On) : Preset at 1 min.
Time delay (Off) : Under voltage : 3 sec. (Fixed)
: Over voltage: 2 sec. (Fixed)
Relay out put :
Output Type : 2-pole change over (SPST)
Contact rating : 16A at 250VAC, Max. 3500W
Operations : Mechanical : 2x107 times
Electrical : 1 x105 times
Relay reset : Automatic
Environmental
Timperature range : -10 to +55°c
Storage temperature : -10 to +70°c
Humidity operation : Max 85% RH
Encloser
Output type : Power plug
Indicator : LED 3 mm.
Dimension (mm) : 93 x 120 x 44
Weight : 380g
Power Cable length : 1100 mm. Phase protection relay,compressor protection,plug,power protection plug,Compressor protection plug, ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
